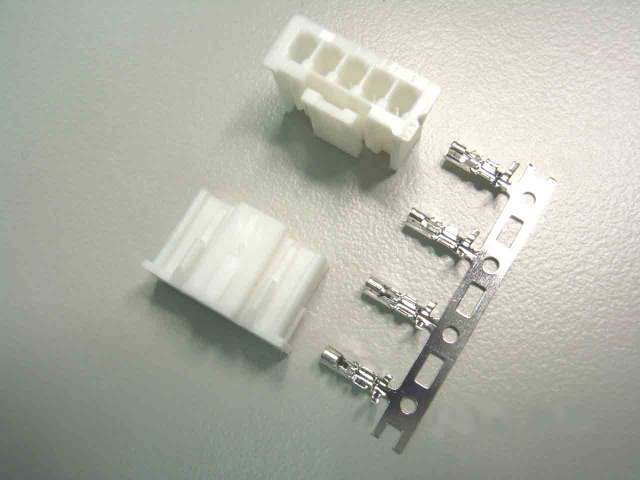

型号: A2508 Series  (PITH:2.5mm)

规格 :
Current Rating: 3A AC, DC
Voltage Rating: 250V AC,DC
Temperature Range: -25 deg C ~ +85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 1000M Omega Min.
Withstanding Voltage: 1000V AC/minute
Wire Range : AWG#20~#28
Insulation O.D. : 1.90mm ( Max.)


A2508 Series PDF
